Praktik Singkat - Normalisasi Basis Data

Praktik Normalisasi Basis Data

Software yang dibutuhkan :

MySQL/ MariaDB server, bisa juga XAMPP dan sejenisnya
HeidiSQL (sebagai database client GUI versi desktop agar sat-set), bisa juga phpMyAdmin (database client GUI versi browser), boleh juga Navicat dan sejenisnya.

Memulai Pekerjaan

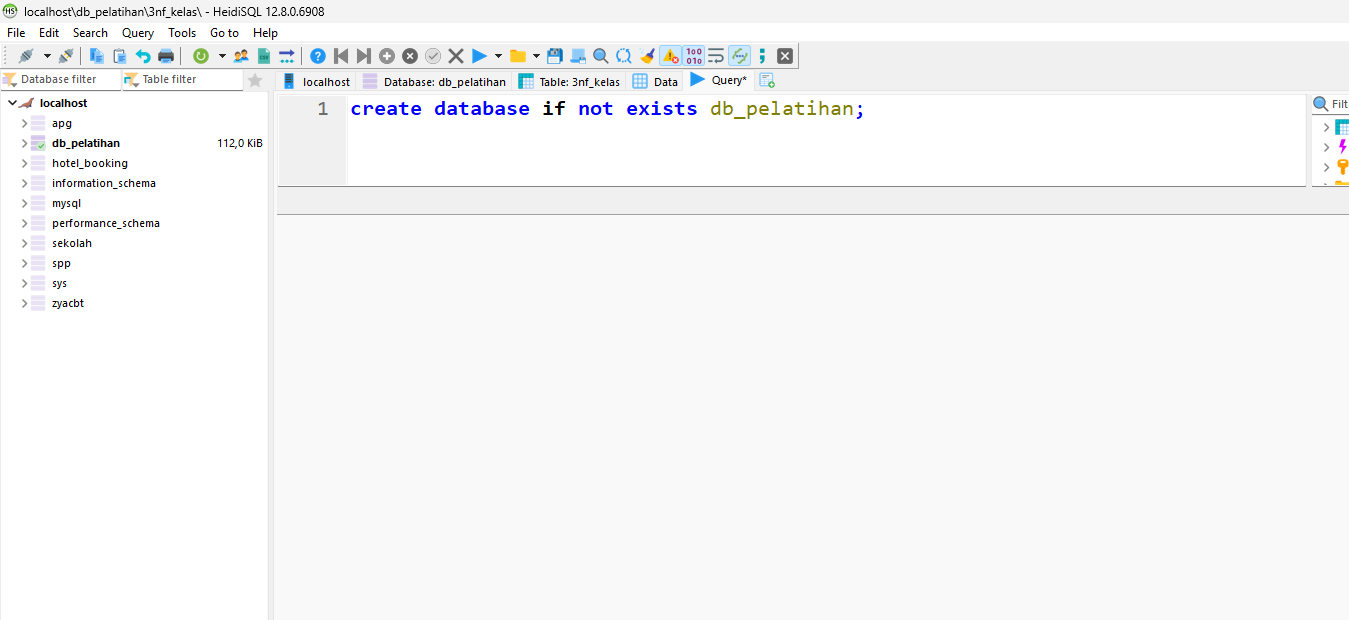

Aktifkan MySQL/ Mariadb server, lalu buka HeidiSQL atau sejenisnya.

Membuat database baru

create database db_pelatihan;

Mengaktifkan db_pelatihan

use db_pelatihan;

Membuat tabel pelatihan

create table pelatihan(
    id_peserta char(3) not null primary key,
    nama_peserta varchar(30),
    no_hp char(12),
    alamat varchar(50),
    kelas varchar(30),
    instruktur varchar (30),
    jadwal varchar(50)
);

Memasukkan data ke dalam tabel pelatihan

insert into pelatihan values
("P01","Andi","08123456789","Jl. Melati 1","Python, Excel","Budi, Siti","Senin 10.00, Rabu 09.00"),
("P02","Budi","08234567890","Jl. Mawar 3","Python","Budi","Senin 10.00"),
("P03","Citra","08121234123","Jl. Kenanga 2","Python, Web","Budi, Wawan","Senin 10.00, Selasa 13.00"),
("P04","Dewi","08561234567","Jl. Teratai 4","Excel","Siti","Rabu 09.00"),
("P05","Eko","08134561234","Jl. Melati 2","Web","Wawan","Selasa 13.00"),
("P06","Fani","08216547890","Jl. Mawar 2","Python, Web, Excel","Budi, Wawan, Siti","Senin 10.00, Selasa 13.00, Rabu 09.00"),
("P07","Gina","08321456789","Jl. Anggrek 3","Data Analyst","Agus","Kamis 14.00"),
("P08","Hadi","08432178965","Jl. Teratai 5","Data Analyst","Agus","Kamis 14.00"),
("P09","Intan","08127654321","Jl. Melati 4","Excel","Siti","Rabu 09.00"),
("P10","Joko","08215678932","Jl. Mawar 1","Python, Data Analyst","Budi, Agus","Senin 10.00, Kamis 14.00");

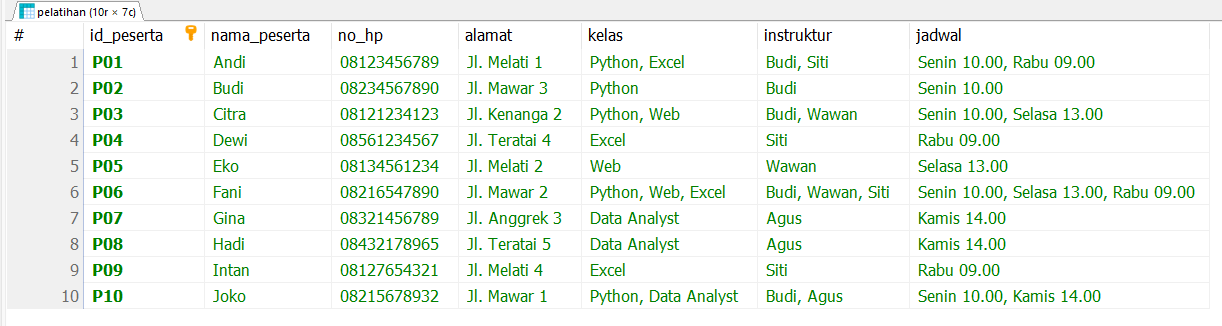

Menampilkan data di dalam tabel pelatihan

select * from pelatihan;

Masalah:

Kolom Kelas, Instruktur, dan Jadwal mengandung multiple values → belum atomic (belum bentuk 1NF).

Normalisasi 1NF

Membuat tabel baru 1nf_pelatihan

create table 1nf_pelatihan(
    id_peserta char(3) not null,
    nama_peserta varchar(30),
    no_hp char(12),
    alamat varchar(50),
    kelas varchar(30),
    instruktur varchar (30),
    jadwal varchar(50)
);

Memasukkan data 1nf_pelatihan

insert into 1nf_pelatihan values
("P01","Andi","08123456789","Jl. Melati 1","Python","Budi","Senin 10.00"),
("P01","Andi","08123456789","Jl. Melati 1","Excel","Siti","Rabu 09.00"),
("P02","Budi","08234567890","Jl. Mawar 3","Python","Budi","Senin 10.00"),
("P03","Citra","08121234123","Jl. Kenanga 2","Python","Budi","Senin 10.00"),
("P03","Citra","08121234123","Jl. Kenanga 2","Web","Wawan","Selasa 13.00"),
("P04","Dewi","08561234567","Jl. Teratai 4","Excel","Siti","Rabu 09.00"),
("P05","Eko","08134561234","Jl. Melati 2","Web","Wawan","Selasa 13.00"),
("P06","Fani","08216547890","Jl. Mawar 2","Python","Budi","Senin 10.00"),
("P06","Fani","08216547890","Jl. Mawar 2","Web","Wawan","Selasa 13.00"),
("P06","Fani","08216547890","Jl. Mawar 2","Excel","Siti","Rabu 09.00"),
("P07","Gina","08321456789","Jl. Anggrek 3","Data Analyst","Agus","Kamis 14.00"),
("P08","Hadi","08432178965","Jl. Teratai 5","Data Analyst","Agus","Kamis 14.00"),
("P09","Intan","08127654321","Jl. Melati 4","Excel","Siti","Rabu 09.00"),
("P10","Joko","08215678932","Jl. Mawar 1","Python","Budi","Senin 10.00"),
("P10","Joko","08215678932","Jl. Mawar 1","Data Analyst","Agus","Kamis 14.00");

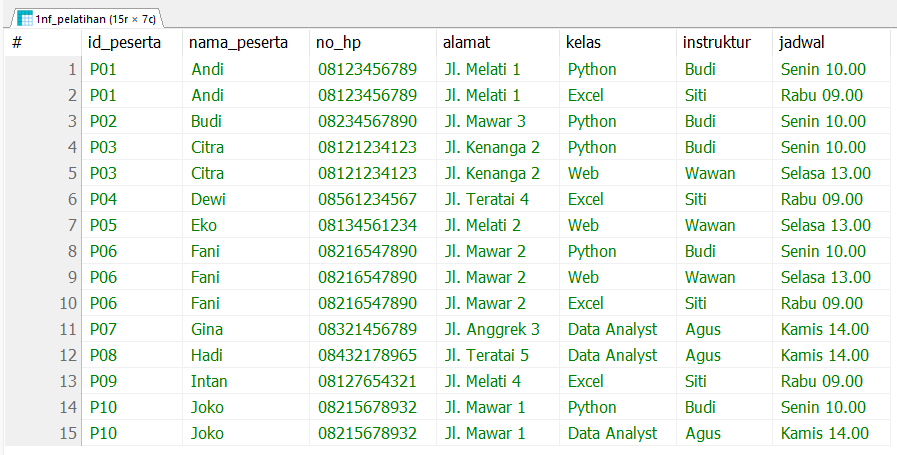

Menampilkan data di dalam tabel 1nf_pelatihan

select * from 1nf_pelatihan;

Normalisasi 2NF

Hilangkan partial dependency → bagi tabel agar setiap atribut non-kunci hanya tergantung pada seluruh primary key.

Membuat tabel 2nf_peserta

create table 2nf_peserta(
    id_peserta char(3) not null,
    nama_peserta varchar(30),
    no_hp char(12),
    alamat varchar(50)
);

Memasukkan data 2nf_peserta

insert into 2nf_peserta values
("P01","Andi","08123456789","Jl. Melati 1"),
("P02","Budi","08234567890","Jl. Mawar 3"),
("P03","Citra","08121234123","Jl. Kenanga 2"),
("P04","Dewi","08561234567","Jl. Teratai 4"),
("P05","Eko","08134561234","Jl. Melati 2"),
("P06","Fani","08216547890","Jl. Mawar 2"),
("P07","Gina","08321456789","Jl. Anggrek 3"),
("P08","Hadi","08432178965","Jl. Teratai 5"),
("P09","Intan","08127654321","Jl. Melati 4"),
("P10","Joko","08215678932","Jl. Mawar 1");

Menampilkan data 2nf_peserta

select * from 2nf_peserta

Membuat tabel 2nf_kelas

create table 2nf_kelas(
    kode_kelas char(3) not null,
    nama_kelas varchar(30),
    nama_instruktur varchar (30),
    jadwal varchar(50)
);

Memasukkan data 2nf_kelas

insert into 2nf_kelas values
("K01","Python","Budi","Senin 10.00"),
("K02","Excel","Siti","Rabu 09.00"),
("K03","Web","Wawan","Selasa 13.00"),
("K04","Data Analyst","Agus","Kamis 14.00");

Menampilkan data tabel 2nf_kelas

select * from 2nf_kelas;

Membuat tabel relasi 2nf_peserta_kelas

create table 2nf_peserta_kelas(
    id_peserta char(3) not null,
    kode_kelas char(3) not null
);

Memasukkan data tabel relasi 2nf_peserta_kelas

insert into 2nf_peserta_kelas values
("P01","K01"),
("P01","K02"),
("P02","K02"),
("P03","K01"),
("P03","K03"),
("P04","K02"),
("P05","K03"),
("P06","K01"),
("P06","K03"),
("P06","K02"),
("P07","K04"),
("P08","K04"),
("P09","K02"),
("P10","K01"),
("P10","K04");

Menampilkan data tabel 2nf_peserta_kelas

select * from 2nf_peserta_kelas;

Test Query-1

Mengambil data join 3 tabel secara penuh

SELECT * FROM 2nf_peserta a
LEFT JOIN 2nf_peserta_kelas b
ON a.id_peserta = b.id_peserta
LEFT JOIN 2nf_kelas c
ON b.kode_kelas = c.kode_kelas
ORDER by a.id_peserta

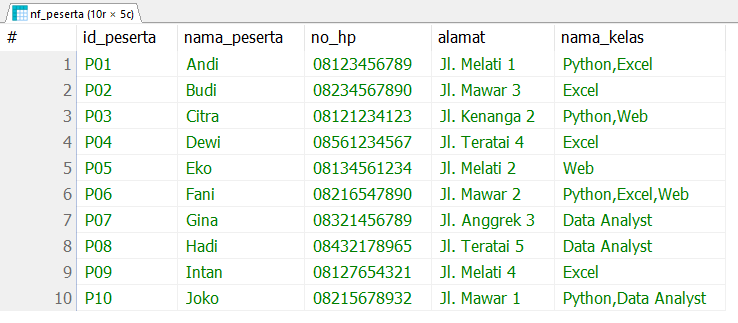

Test Query-2

Mengambil data join 3 tabel dan dikelompokkan nama_kelas nya berdasarkan id_peserta

SELECT a.id_peserta,a.nama_peserta,a.no_hp,a.alamat,
GROUP_CONCAT(c.nama_kelas) AS nama_kelas FROM 2nf_peserta a
LEFT JOIN 2nf_peserta_kelas b
ON a.id_peserta = b.id_peserta
LEFT JOIN 2nf_kelas c
ON b.kode_kelas = c.kode_kelas
GROUP BY a.id_peserta
ORDER by a.id_peserta

Normalisasi 3NF

Syarat : sudah 2NF
Hilangkan transitive dependency

Membuat tabel 3nf_instruktur

create table 3nf_instruktur(
    id_instruktur char(3) not null,
    nama_instruktur varchar(30),
    jadwal varchar(50)
);

Memasukkan data 3nf_instruktur

insert into 3nf_instruktur values
("I01","Budi","Senin 10.00"),
("I02","Siti","Rabu 09.00"),
("I03","Wawan","Selasa 13.00"),
("I04","Agus","Kamis 14.00");

Menampilkan data tabel 3nf_instruktur

select * from 3nf_instruktur;

Membuat tabel 3nf_kelas, (seharusnya cukup update tabel 2nf_kelas), tapi memang disengaja membuat baru, agar tahu perbedaan dengan tabel sebelumnya.

create table 3nf_kelas(
    kode_kelas char(3) not null,
    nama_kelas varchar(30),
    id_instruktur char(3)
);

Memasukkan data 3nf_kelas

insert into 3nf_kelas values
("K01","Python","I01"),
("K02","Excel","I02"),
("K03","Web","I03"),
("K04","Data Analyst","I04");

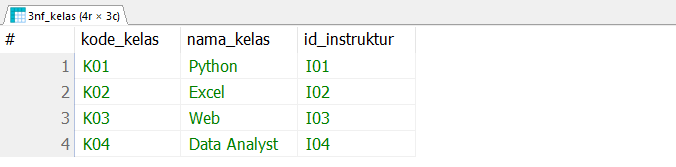

Menampilkan data tabel 3nf_kelas

select * from 3nf_kelas;

Tabel akhir yang dipakai:

2nf_peserta
2nf_peserta_kelas (untuk menghubungkan tabel peserta dengan kelas)
3nf_kelas
3nf_instruktur

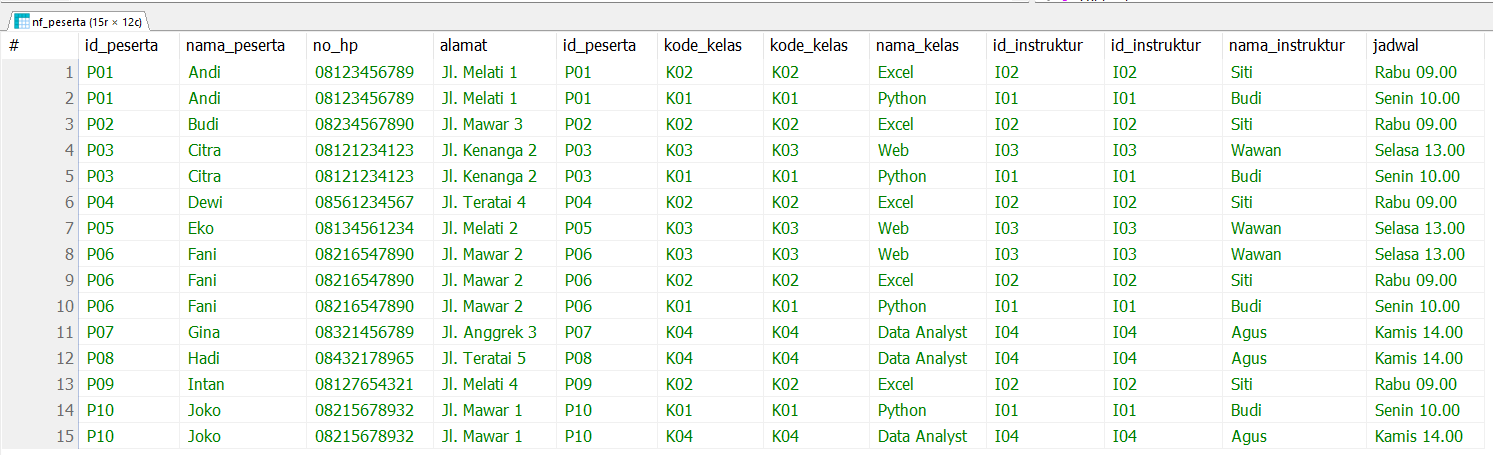

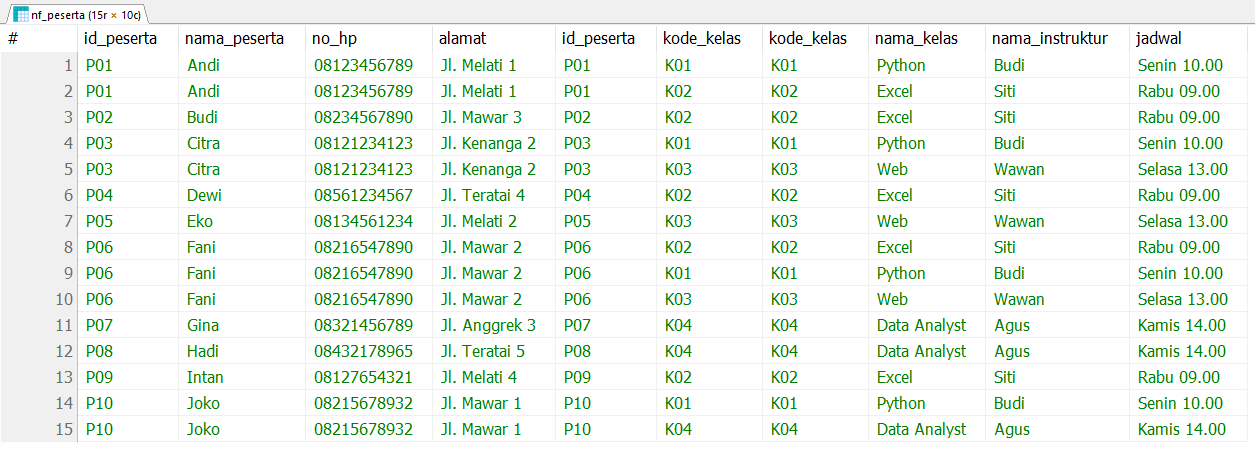

Test Query Full

SELECT * FROM 2nf_peserta a
LEFT JOIN 2nf_peserta_kelas b
ON a.id_peserta = b.id_peserta
LEFT JOIN 3nf_kelas c
ON b.kode_kelas = c.kode_kelas
LEFT JOIN 3nf_instruktur d
ON c.id_instruktur = d.id_instruktur
ORDER BY a.id_peserta

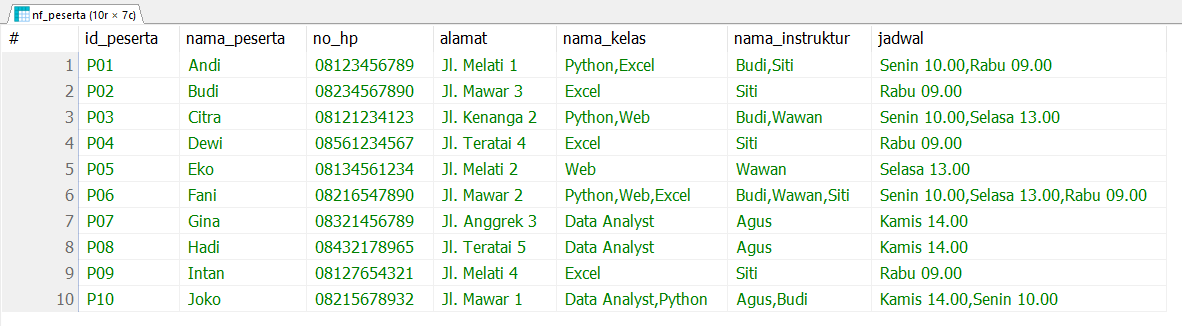

Test Query Final with concat

SELECT
a.id_peserta, a.nama_peserta, a.no_hp, a.alamat,
GROUP_CONCAT(c.nama_kelas) nama_kelas,
GROUP_CONCAT(d.nama_instruktur) nama_instruktur,
GROUP_CONCAT(d.jadwal) jadwal
FROM 2nf_peserta a
LEFT JOIN 2nf_peserta_kelas b
ON a.id_peserta = b.id_peserta
LEFT JOIN 3nf_kelas c
ON b.kode_kelas = c.kode_kelas
LEFT JOIN 3nf_instruktur d
ON c.id_instruktur = d.id_instruktur
GROUP BY a.id_peserta
ORDER BY a.id_peserta
